“AqasPrime™ Columns”

   *“AqasPrime™” is trademarks of AQAS Corporation.

New Separation Material: AqasPrime™

■ Ultra-high resolution separation

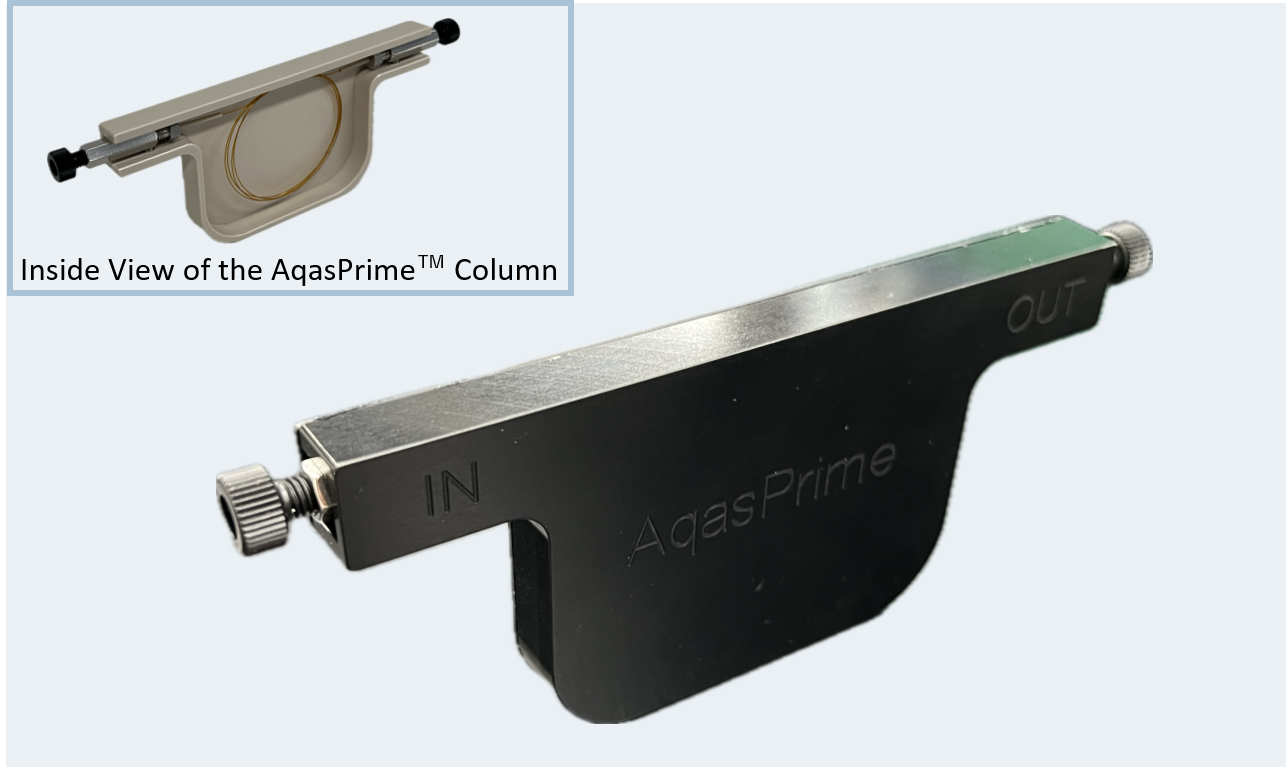

A column filled with sponge-like monolithic silica as a separation medium, housed in an inert, fine quartz capillary, enables ultra-high resolution separations.
■ Simultaneous separation of complex components never before achieved
This technology makes it possible to separate a wide range of compounds, including glycosides with both lipophilic and hydrophilic parts found in natural products such as plants, simultaneously and with astonishing precision.
■ Contribution to the prevention of overharvesting rare plant resources and SDGs
Only a single leaf (a few milligrams) is needed for analysis, and the total amount of solvent disposed of per year is less than one can of beer (300 mL). This makes the method environmentally friendly, resource-efficient, and cost-effective.
*Compared to conventional columns (4.6 mm I.D. × 150 mm), which require approximately 3 drums (525 L).

Specification of “AqasPrime™ Column”

Item
Column 0.1 mm ID × 70 cm long (capillary column size)
Separating Material Monolithic silica
Column holder W: 12 cm × D: 5.5 cm × H: 1 cm (column cover size)
Connection 1/16 inch
Recommended pH 2 ~ 8
Recommended temperature 30 ~ 60℃
Maximum pressure 30 MPa
Flow rate 0.2 ~ 1.5 μL/min
*Custom columns are available based on your specific requirements. Please contact us here.

“AqasPrime™ Column” Lineup

Catalog No. Product Name Column Size Adsorption Layer Thickness Hydrophobicity at Stationary Phase Price
CA4000 AqasPrime™ Column CA4000 0.1×700 mm Thick High Please contact us
CB4000 AqasPrime™ Column CB4000 0.1×700 mm Medium Medium Please contact us
CD4000 AqasPrime™ Column CD4000 0.1×700 mm Thin Low Please contact us
AqasPrime™ Column + Connection Piping Set
CA4000-FA AqasPrime™ Column CA4000-FA 0.1×700 mm Thick High Please contact us
CB4000-FA AqasPrime™ Column CB4000-FA 0.1×700 mm Medium Medium Please contact us
CD4000-FA AqasPrime™ Column CD4000-FA 0.1×700 mm Thin Low Please contact us
Other
FA1000 Connection Piping FA1000 Please contact us
*Prices, appearance, and specifications are subject to change without notice.

For purchasing inquiries, please contact us here.

“AqasPrime™ System”

Planned for trial sale

A demo unit is operating at our company. If you are interested, please feel free to contact us.
We also accept on-site performance tests.
